In Southeast Asia, cooling towers operate under hot, humid, and long-running conditions. From real project experience, one thing is very clear: if the Cooling Tower Fill is not selected properly, overall system performance will drop quickly.
Whether people call it Tower Fill, Film Fill Cooling Tower, or Cooling Tower Media, they are all referring to the same key component responsible for heat exchange between water and air.
If you are not sure which fill structure suits your system, you can send us your drawings or working conditions, and our engineers can help you choose the right solution. Contact us here.
The main role of cooling tower fill is to increase the contact surface between hot water and airflow. By spreading water into thin films or small droplets, heat can be removed more efficiently. This is why modern cooling towers rely heavily on Film Fill and Corrugated Fill structures.
Many operators focus on fans or pumps, but in practice, the internal fill design often determines real cooling performance. A well-designed fill improves air-water mixing and stabilizes airflow.
Fill never works alone. Its performance is closely related to other parts such as the Water Collector, Drift Eliminator, and Air Inlet Louvers. When these parts work together properly, the entire cooling tower system becomes more stable.
If you are upgrading or replacing fill, it is better to check the whole system instead of only changing one part. You may send us your tower size or layout, and we can review it for you. Contact us here.
Induced draft towers are widely used in industrial plants. For this type, Film Fill Cooling Tower designs are common because they provide uniform water distribution and stable heat exchange performance.
Crossflow towers usually use large Corrugated Fill blocks. Water flows downward while air enters horizontally through Air Inlet Grilles. This design is often found in HVAC cooling towers and commercial buildings.
Counterflow towers are compact and efficient. They normally use high-efficiency Cooling Tower Media with narrow flute spacing to maximize heat transfer.
In steel plants, chemical factories, or power stations, water quality is often poor. In such cases, wider-spacing tower fill or splash-type structures are preferred to reduce clogging risks.
If you are unsure which fill type matches your cooling tower structure, you can provide your system details or photos for technical advice. Contact us here.
PVC is the most widely used material for Cooling Tower Fill. It is cost-effective and suitable for water temperatures below 55°C.
PP material can handle higher temperatures and has better chemical resistance. When hot process water is involved, PP Cooling Tower Media is usually a safer choice.
CPVC is used in special conditions where both high temperature and corrosion resistance are required. It offers long service life but comes at a higher cost.
If you are not sure which material is suitable for your system, send us your water temperature and water quality information for recommendation. Contact us here.

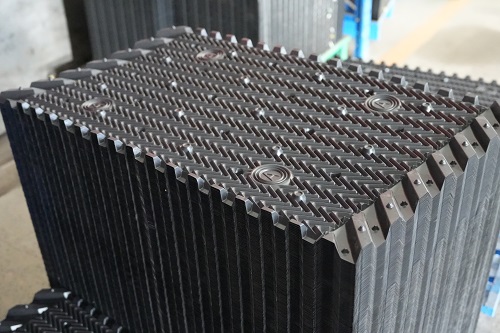

Film Fill forms a continuous thin water film on corrugated sheets. The flute angle and sheet spacing directly affect airflow turbulence and heat transfer efficiency.
Splash fill breaks water into droplets using grid or bar structures. It is more tolerant of dirty water but provides lower cooling efficiency compared with Film Fill.
Some cooling towers use hybrid designs that combine splash fill at the top and Film Fill at the bottom. This helps balance anti-clogging ability and cooling efficiency.
Hybrid solutions are often customized. You may send us your existing tower size or drawings for a tailored solution. Contact us here.
High-quality Cooling Tower Media increases contact time between water and air. Compared with old or damaged fill, new fill can improve cooling efficiency by 10** to 30**.
Better heat exchange reduces fan and pump workload, helping lower long-term operating costs.
In Southeast Asia, wet-bulb temperature is often high. Efficient Film Fill Cooling Tower designs help maintain stable cooling performance even during peak seasons.
Dust, scale, and algae increase the risk of clogging. For dirty water systems, wider spacing tower fill should be considered.
PVC is suitable for normal temperature applications. For high-temperature systems, PP or CPVC Cooling Tower Fill is recommended.
Low-cost fill may deform or age quickly under heat and UV exposure. Stable quality and proper design bring better long-term value.
If you want help selecting the right model instead of guessing, feel free to send us your project details. Contact us here.
Regular inspection helps detect broken or collapsed fill early.
Periodic flushing and chemical cleaning help remove scale and biological growth from Cooling Tower Media surfaces.
Good performance also depends on components such as Mist Eliminator and Demister, which reduce water loss and protect surrounding equipment.
Corrugated Fill offers strong mechanical strength and stable airflow channels. It adapts well to continuous operation and large air volumes, which explains why it is widely used in modern cooling tower systems across tropical regions.
Cooling Tower Fill plays a central role in cooling tower performance. By selecting the right material, structure, and size, and by coordinating with related components such as Water Collector, Drift Eliminator, and Air Inlet Louvers, the cooling system becomes more efficient and reliable.
If you have any questions about selection, installation, or replacement, you can send us your drawings or sample photos for technical support. Contact us here.
