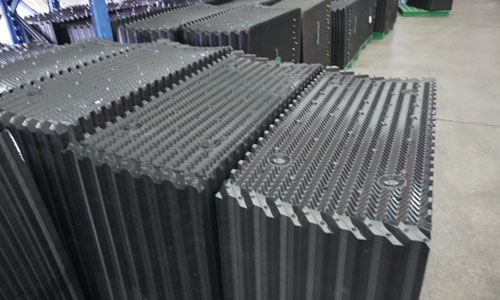

Guide to Cooling Tower Fill Specifications

Understanding cooling tower fill specifications is essential for selecting the right media to optimize thermal performance and longevity.These technical parameters ensure the fill integrates correctly with your tower's design and operating conditions.
Key Physical Specifications
The core specifications define the fill's structure and fit:
Fill Sheet Spacing:The distance between sheets,measured in millimeters(e.g.,19mm,26mm).Closer spacing increases heat transfer surface area but may be prone to fouling.

Surface Area Density:Expressed as m²/m³,this indicates the available cooling surface within a fill volume.
Waveform Design:The pattern(e.g.,cross-fluted,vertical)that controls water distribution and airflow.
Module Dimensions:The standard block size(Length x Width x Depth)for installation.
Material and Performance Specifications
These relate to durability and operational output:
Material Type:Primarily PVC for standard use or Polypropylene(PP)for higher temperature/corrosive water.
Thermal Performance Data:Look for data tested against standards like CTI Standard 136 to compare cooling capacity.
Nominal Thickness:The thickness of the fill sheets,affecting durability.
Choosing the Right Specification
Selecting specifications requires balance.High-efficiency fills with tight spacing(e.g.,19mm)offer maximum cooling,while a wider spacing(e.g.,38mm)provides better fouling resistance for challenging water conditions.Always match the material to your water chemistry and temperature.
In summary,carefully reviewing cooling tower fill specifications—from physical dimensions to material grade—is fundamental for achieving efficient,reliable,and cost-effective operation.
